Ichimoku cloud explained for forex and gold
Most indicators answer one narrow question. RSI asks whether a move is stretched, the ATR asks how far prices usually travel, and the ADX asks how strong a trend is. The Ichimoku cloud tries to answer several questions at once: which way the trend points, where support and resistance sit, and whether momentum agrees with the trend.
That makes it look complicated at first, with five lines and a shaded band that runs ahead of price. Once you know what each line measures, the chart becomes much easier to read. This guide walks through the calculation, the main readings and two real examples from EUR/USD and gold.
Free on Telegram. See where gold and the major pairs sit against their key trend levels each day on the Forexuro channel.
Where the Ichimoku cloud comes from
The full name is Ichimoku Kinko Hyo, which is usually translated as "one glance equilibrium chart". It was developed in Japan by a journalist writing under the pen name Goichi Hosoda and published in the late 1960s after years of work. The idea was a single chart that shows the balance between buyers and sellers without the need to flick between indicators.
Unlike oscillators, Ichimoku is drawn on the price chart itself. Every line is based on midpoints of recent highs and lows rather than on closing prices alone. That means it responds to the full range of trading, not just where each bar happened to finish. If you have followed our series on the RSI, MACD and ADX, think of Ichimoku as a trend framework that sits on top of the price chart rather than below it.

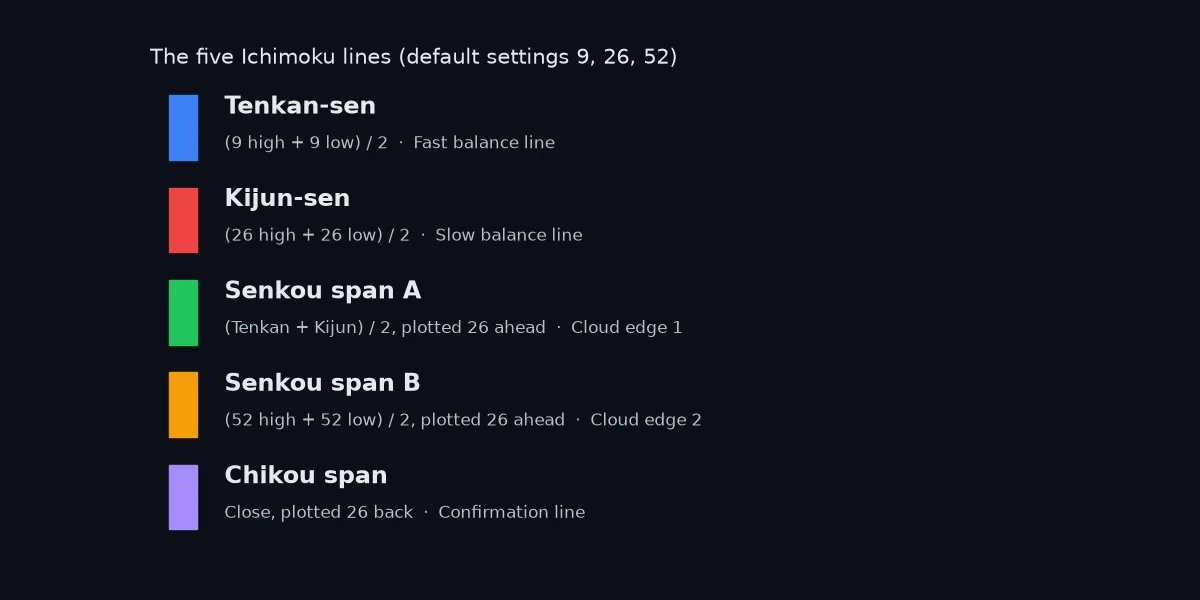

The five lines and how they are calculated
Your platform will do the arithmetic, but knowing the inputs helps you interpret each line.
- Tenkan-sen (conversion line). The highest high plus the lowest low of the last 9 periods, divided by two. It is the fast line and reacts quickly to new swings.
- Kijun-sen (base line). The same midpoint over 26 periods. It moves more slowly and is often treated as the main balance level of the trend.
- Senkou span A (leading span A). The average of the Tenkan-sen and the Kijun-sen, plotted 26 periods ahead.
- Senkou span B (leading span B). The 52 period midpoint, also plotted 26 periods ahead.
- Chikou span (lagging span). The current close, plotted 26 periods back.
The area between the two leading spans is the cloud, or kumo. When span A is above span B, the cloud is usually shaded green; when span B is on top, it is shaded red. Because both spans are shifted forward, the cloud extends into empty space on the right of the chart.
Reading the cloud: above, below and inside
The simplest reading is the position of price relative to the cloud.
- Price above the cloud: the trend is up, and the top of the cloud acts as the first support area.
- Price below the cloud: the trend is down, and the bottom of the cloud acts as resistance.
- Price inside the cloud: the trend is unclear. Prices often chop between the two edges.
The thickness of the cloud matters too. A thick cloud means the 26 and 52 period midpoints are far apart, so it takes a bigger move to push through it. A thin cloud is easier to break, which is why traders pay attention when price approaches a narrow section. The shaded colour ahead of price tells you which way the leading spans are pointing based on data already known. It is a description of the existing balance, not a prediction.
Tenkan and Kijun crosses
A cross of the Tenkan-sen above the Kijun-sen is the classic bullish TK cross; a cross below is bearish. The idea is similar to a moving average crossover: short term balance moving above or below medium term balance.
Position matters. A bullish TK cross above the cloud agrees with the trend and is usually treated as the stronger signal. The same cross below the cloud goes against the bigger picture and is weaker. A cross inside the cloud is considered neutral. Because the lines are built from highs and lows, they can stay flat for days in a range, and flat lines crossing back and forth carry little information.
The Kijun-sen on its own is also useful. In a trending market, pullbacks often stall around it, and a daily close on the other side of a flat Kijun is an early sign that the trend is losing control. Our lesson on trends and moving averages covers the same logic with simpler tools.
The Chikou span as a confirmation tool
The Chikou span is simply today's close, drawn 26 periods to the left. It lets you compare the current price with where the market traded about a month ago on a daily chart.
If the Chikou span sits above the price bars from 26 periods earlier, today's close is higher than that period's prices, which supports an uptrend reading. If it is below them, it supports a downtrend reading. When the Chikou span is tangled inside old price bars, momentum is mixed. Many traders only act on a cloud or TK signal when the Chikou span agrees, which filters out a fair number of weak setups.
EUR/USD: from above the cloud to below it

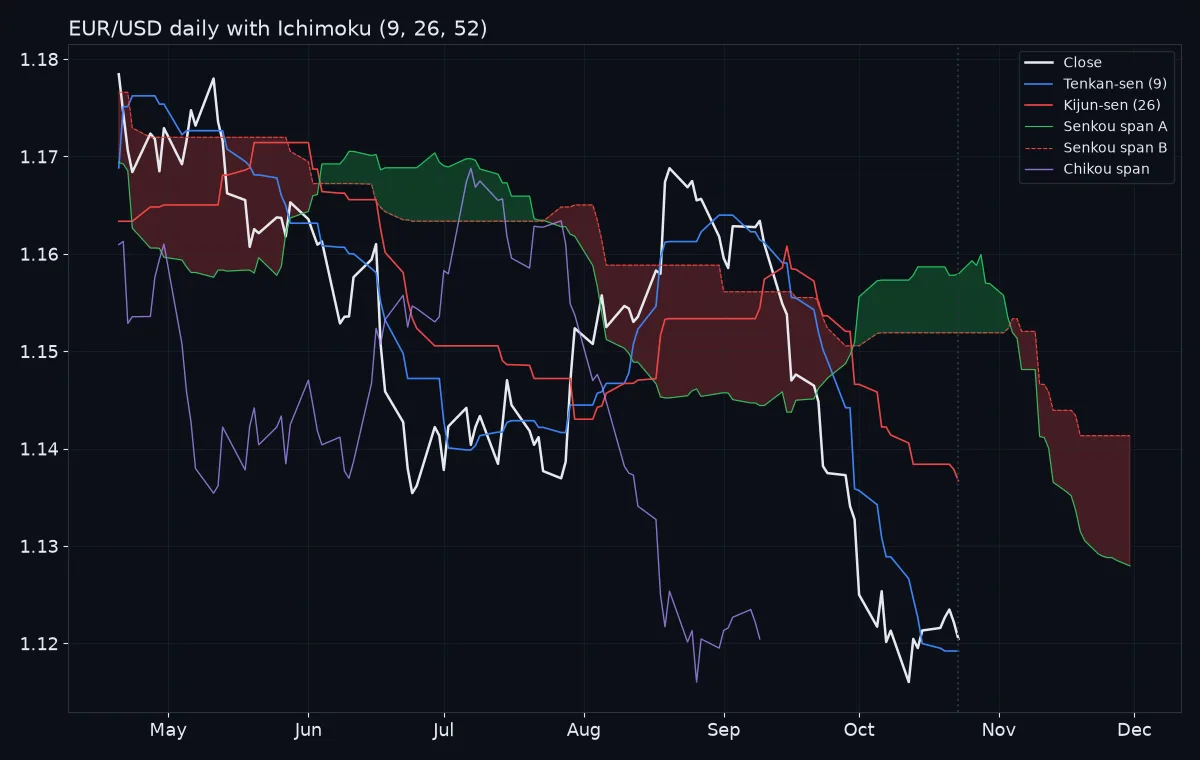

The first chart shows EUR/USD daily closes since late April with the full Ichimoku set. The calculations use Yahoo Finance daily bars and the default settings.
On our calculation, EUR/USD closed above the cloud from 19 August, slipped back inside it on 14 September and closed below it from 22 September. The Tenkan-sen crossed below the Kijun-sen on 15 September, a week before price left the cloud, so the TK cross gave an earlier warning than the cloud break.
By the close on 23 October, EUR/USD was at about 1.1204, with the Tenkan-sen at about 1.1192 and the Kijun-sen higher at about 1.1367. The cloud directly above price sat between roughly 1.152 and 1.158, while the leading spans plotted 26 days ahead were at about 1.128 and 1.141, with span B on top. In plain terms, the bearish structure was still in place, but the fast line had flattened next to price as the pair moved sideways. Our EUR/USD pair page covers the drivers behind those moves.
Gold: a summer uptrend and an autumn break
Gold makes a useful second example because it trended in both directions this year.

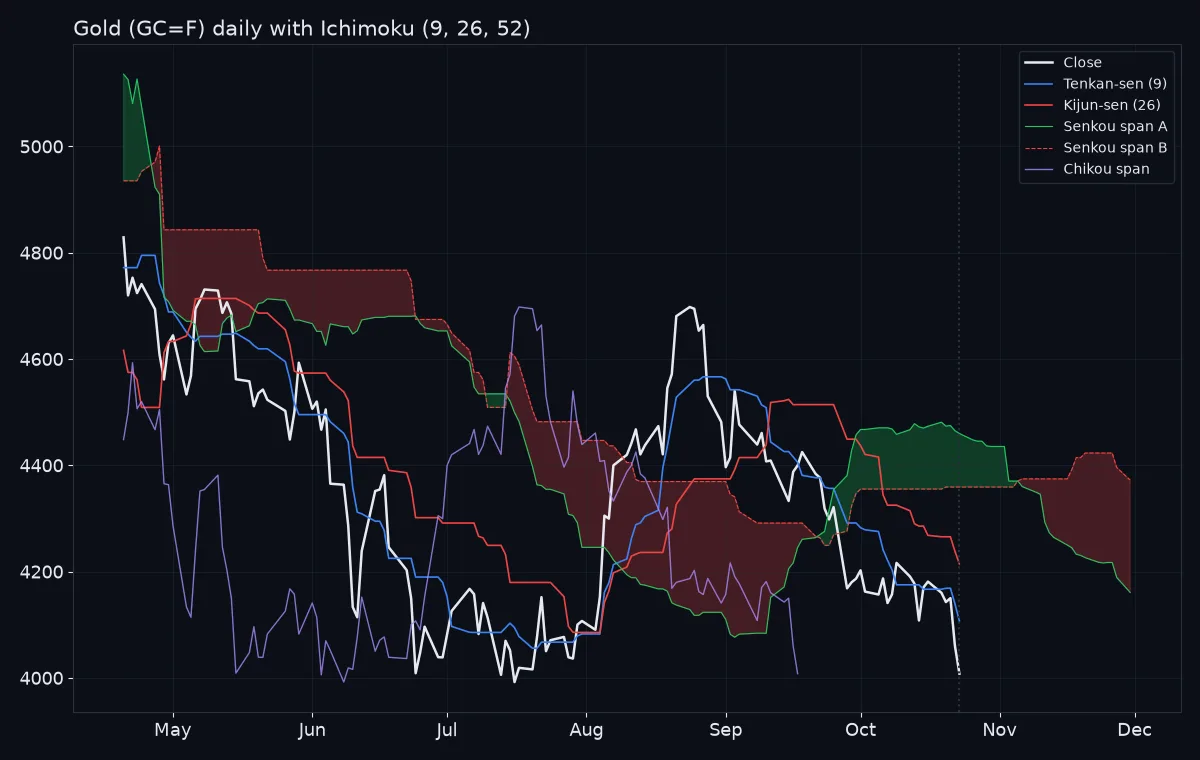

On our calculation, gold futures traded below the cloud for most of the period from mid May to early August. A bullish TK cross came on 5 August, and price closed above the cloud from 10 August as the metal rallied towards $4,700 later that month. The Tenkan-sen crossed back below the Kijun-sen on 11 September, price re-entered the cloud on 24 September and closed below it from 28 September.
By 23 October gold was near $4,008, below the Tenkan-sen at about $4,107 and the Kijun-sen at about $4,214. The cloud plotted ahead had turned red, with span A near $4,161 and span B near $4,372. Every element pointed the same way, which is what a strong Ichimoku downtrend looks like. It does not say how far the move will run. For live gold ideas, see our XAUUSD trade setups.
Settings and timeframes
The 9, 26 and 52 settings date from a time when Japanese markets traded six days a week. Some traders adjust them for a five day week, for example to 10, 30 and 60, but the defaults remain the most widely used, which has its own value: levels watched by many traders tend to matter more.
Timeframe changes the meaning. On a daily chart, the Kijun-sen covers about five weeks of trading and the cloud looks about five weeks ahead. On a one hour chart, the same lines cover about a day. Ichimoku on very short timeframes reacts to noise, so many traders read the daily chart for the trend and use a lower timeframe only to time entries in that direction.
Combining Ichimoku with other tools
Ichimoku is strongest as a trend filter. A practical approach is to take trend setups only in the direction the cloud allows, and use another tool for timing. For example, an oscillator dip while price holds above the cloud can mark a pullback entry in an uptrend.
The ADX pairs well with it too. When the ADX is low and price sits inside a thick cloud, both are telling you the market is directionless. When the ADX is rising and price has cleared the cloud, both agree that a trend is under way. Fibonacci levels that line up with the Kijun-sen or a cloud edge give a stronger area to watch, and our Fibonacci retracement guide explains how to draw them.
Common Ichimoku mistakes
- Treating the future cloud as a forecast. It is plotted ahead, but it is built from past data.
- Taking every TK cross. Crosses inside the cloud or against the trend fail often.
- Ignoring cloud thickness. A thin cloud gives weak support or resistance.
- Using it in tight ranges. Flat lines and frequent crosses mean the tool has little to say.
- Placing stops exactly on a line. Many traders watch the same levels, so a small buffer is sensible.
- Changing settings after losses. Tweaking the numbers to fit past trades leads to curve fitting.
Risk control with Ichimoku levels
Ichimoku gives natural places for a stop loss: below the Kijun-sen in an uptrend, or beyond the far edge of the cloud for a longer view. The problem is that these levels can be a long way from the entry, especially on gold. A stop below a thick cloud on a daily gold chart can be more than $150 away.
The answer is not to move the stop closer than the structure allows, but to cut position size so the cash at risk stays the same. Our gold position size calculator and the general position size calculator do that for you. Pair this with a fixed percentage risk per trade and you can use wide Ichimoku stops without one loss doing serious damage.
Ichimoku checklist before you act on a reading
- Is price clearly above or below the cloud, or still inside it?
- Does the TK cross agree with the side of the cloud price is on?
- Is the Chikou span clear of the price bars from 26 periods back?
- Is the cloud ahead thick or thin, and which colour is it?
- How far is your stop from entry, and have you sized the trade from it?
- Is a major release due that could move price through the levels?
If you would rather see trend setups already laid out with an entry, a stop loss and three targets, look at how Forexuro signal alerts are structured and check the public results record first. The team behind them has more than 10 years of trading experience. To go deeper into indicators and chart reading, the Advanced Forexuro video course covers volume, volatility and indicators in a dedicated module, and we share daily chart notes on the free Telegram channel.
Official sources
Primary reference pages from regulators, central banks and official bodies on the topics in this article.
- BIS: Triennial Central Bank Survey of foreign exchange markets, 2025, the global data on foreign exchange turnover by currency and trading centre.
- LBMA Gold Price, the London benchmark price for gold in US dollars per troy ounce.
- FCA: permanent restrictions on the sale of CFDs to retail consumers, the UK leverage limits, margin close-out rule, negative balance protection and risk warnings for retail CFD trading.
Frequently asked questions
What are the default Ichimoku settings?
The standard settings are 9, 26 and 52. The Tenkan-sen uses 9 periods, the Kijun-sen 26, and Senkou span B 52. The cloud is plotted 26 periods ahead and the Chikou span 26 periods behind. Most platforms use these values by default.
Is the Ichimoku cloud good for forex?
It works best on pairs and timeframes that trend, because it is built from moving midpoints of past highs and lows. In tight ranges the lines flatten and cross often, which produces weak signals. Many traders use it mainly as a trend filter rather than an entry trigger.
What does it mean when price is inside the cloud?
Price inside the cloud means the trend is unclear. The two cloud edges act as nearby support and resistance, and the usual approach is to wait until price closes clearly above or below the cloud before taking a trend view.
Why is the cloud plotted into the future?
Senkou spans A and B are shifted 26 periods forward, so the cloud shows where those midpoints will sit in the coming weeks based on data already known. It is not a forecast; it simply displays existing levels ahead of price.
Can I use Ichimoku on gold?
Yes. The calculation does not depend on the market. Gold often moves in larger swings than the major pairs, so the distance between price and the Kijun-sen can be wide, and stop losses based on Ichimoku levels need to be sized carefully.
